LangGraph + our abstraction: building ProvenMap's architectural intelligence agents

A note on this post. It was first published in August 2025, and the product has shipped since. The engineering described here — the type-safe layer we built over LangGraph — is unchanged, but some of the product surfaces it mentions were experiments that did not make it into the shipped product. Names and framing have been brought up to date; the technical content is as written.

How we solved type safety, human-AI collaboration, and visual workflow authoring in an agentic system.

Background

When we (a two-member team—my wife and I) decided to switch from Scala to Node.js/TypeScript for our backend in the middle of the project, while simultaneously moving from India to the UK, it was a difficult period in our lives. It was madness.

After working with Scala and Akka Persistence, and having built a workflow engine with a team of bright minds, and working on different workflow engines, LangGraph felt like a breath of fresh air due to its simplicity. Why did we switch from Scala to Node.js? As a two-member bootstrapped team (with small angel investment), we wanted the same stack across our entire platform—we also didn't want overlap with my previous company.

TL;DR: No regrets about switching to Node.js—huge thanks to LangGraph.

The problem we solved

We needed to build a platform where both technical and non-technical stakeholders gain visual access to their architecture. Like any modern platform, we chose to rely heavily on AI agents collaborating on complex software analysis workflows. The main challenge was building agents on-the-fly as users interact with their workspaces. The core challenges:

• Dynamic composable nodes - We made nodes composable; composed nodes are persisted in the database
• Predictable I/O for nodes - To make them composable, we built an I/O layer that leverages LangGraph's state annotation internally. We created abstractions—let's call them CNode and CEdge for discussion
• Runtime type safety - Visually built workflows need compile-time guarantees
• Human-AI collaboration - Seamless handoffs between AI analysis and human review, with resume-from-interrupt using shared schemas
• Comprehensive I/O analysis - Created a comprehensive I/O analysis layer that returns error lists when CNodes and CEdges are used
• Dynamic composition by humans - Non-technical users building type-safe workflows leveraging I/O
• Verifiability for end users - Error handling and simple observability

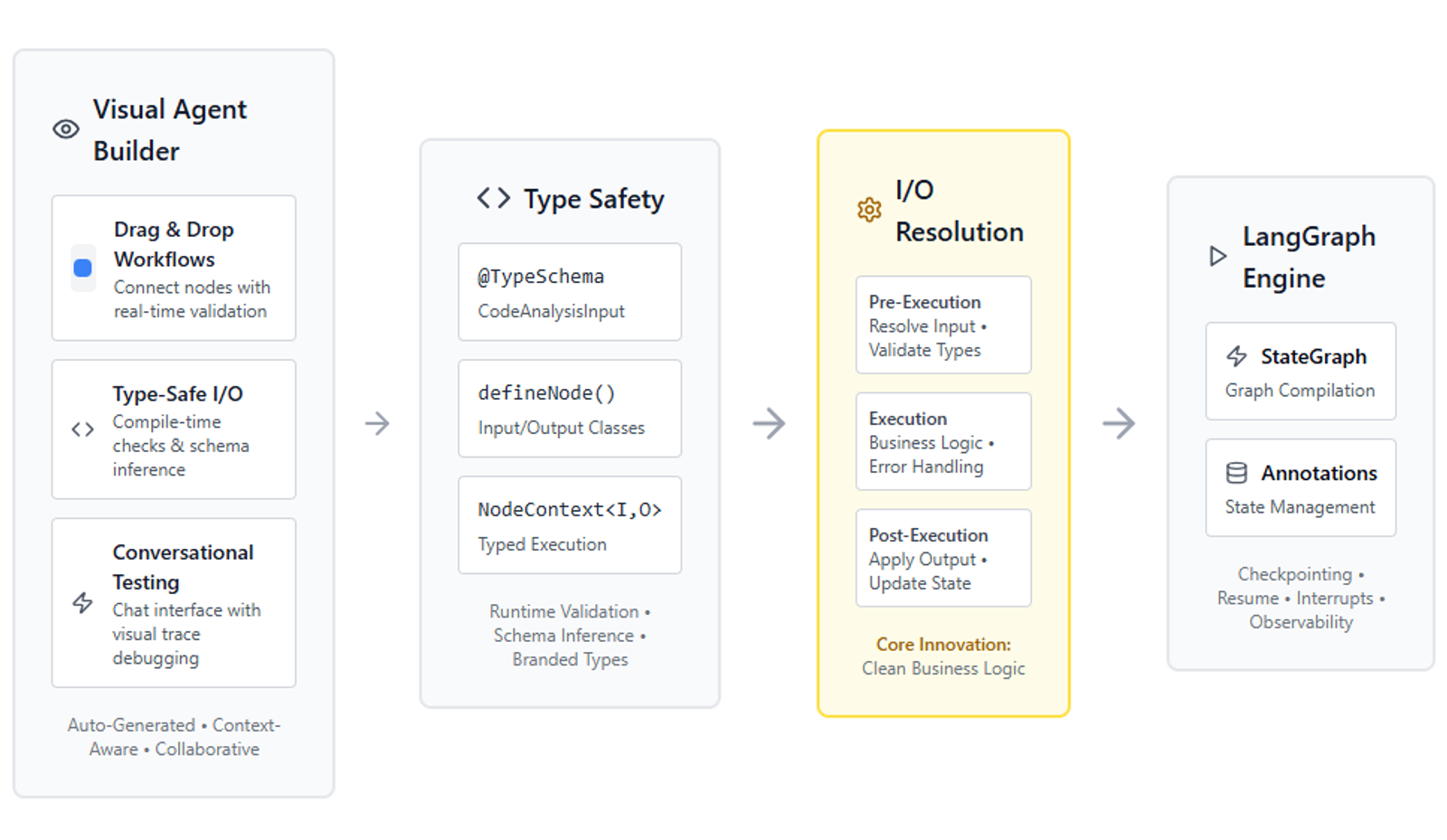

Our key abstraction over LangGraph: explicit input/output resolution

"LangGraph as a framework, particularly state annotation, is a powerful feature that centralizes node state management. The persistence layer and human-in-the-loop were so elegantly designed, effectively solving many challenges."

However, to build a composable and type-safe workflow in our case, we introduced explicit input and output concepts for each node that are resolved before node execution and applied upon node completion. All these properties are ultimately persisted to and resolved from the state annotation system via an abstracted node execution layer, which serves as the interface through which the LangGraph execution engine interacts with our concrete, composable nodes.

"This approach preserves LangGraph's strengths while enabling the type safety and composability we needed."

The core pattern

// 1. Define typed interfaces with decorators
@TypeSchema({ name: 'CodeAnalysisInput' })
class CodeAnalysisInput {
  @Field(() => String, { required: true })
  repositoryUrl!: string

  @Field(() => [String], { required: true })
  analysisScope!: ('architecture' | 'security' | 'performance')[]
}

@TypeSchema({ name: 'CodeAnalysisOutput' })
class CodeAnalysisOutput {
  @Field(() => [String], { required: true })
  architecturalPatterns!: string[]

  @Field(() => Number, { min: 0, max: 1 })
  confidence!: number
}

// 2. Abstract node execution with I/O resolution
const codeAnalysisNode = defineNode({
  name: branded('code-analysis'),
  inputClass: CodeAnalysisInput,
  outputClass: CodeAnalysisOutput,

  execute: async ({ input, context, services }) => {
    // Fully typed business logic - no LangGraph state handling
    const analysisResults = await services.llm.analyze(input.repositoryUrl, {
      scope: input.analysisScope,
    })

    return {
      output: {
        architecturalPatterns: analysisResults.patterns,
        confidence: analysisResults.confidence,
      },
      completionMessage: `Analysis completed with ${analysisResults.confidence}% confidence`,
    }
  },
})

The magic: pre/post execution resolution

// Before node executes: resolve typed input from LangGraph's dynamic state
const input = GraphInstanceResolver.getInstance(
  state.annotations, // LangGraph's dynamic state
  CodeAnalysisInput, // Your typed class
  nodeInstanceName, // Unique node identifier
  fallBackValueResolver, // Handle missing/default values
)

// After node executes: apply typed output back to dynamic state
const newAnnotations = GraphInstanceResolver.applyInstance(
  state.annotations,
  CodeAnalysisOutput,
  nodeInstanceName,
  executionResult.output,
)

This gives us:

• Compile-time type checking for business logic
• Runtime validation through schema decorators
• Dynamic workflow composition without losing type safety
• Visual editor compatibility with full type information

"The real breakthrough was eliminating the impedance mismatch between typed business logic and LangGraph's dynamic state management while preserving the power of both approaches."

Real-world example: architecture review workflow

// 1. AI analyzes codebase
const analysisNode = defineNode({
  name: branded('codebase-analysis'),
  inputClass: CodebaseInput,
  outputClass: AnalysisResults,
  execute: async ({ input, services }) => {
    const results = await services.llm.analyzeCodebase(input)
    return { output: results, completionMessage: 'Analysis complete' }
  },
})

// 2. Human review for high-risk findings
const reviewNode = defineNode({
  name: branded('human-review'),
  inputClass: AnalysisResults,
  outputClass: ReviewDecision,
  execute: async ({ input, services }) => {
    // Check if human review is needed
    if (input.criticalIssues.length > 0) {
      // Create typed interrupt form
      const reviewForm = await services.interruptMediator.interrupt({
        data: new HumanReviewForm({
          findings: input.criticalIssues,
          recommendation: input.aiRecommendation,
        }),
        description: 'Critical security issues found - human review required',
      })

      return {
        output: {
          approved: reviewForm.approved,
          feedback: reviewForm.comments,
        },
        completionMessage: `Review ${reviewForm.approved ? 'approved' : 'rejected'}`,
      }
    }

    // Auto-approve if no critical issues
    return {
      output: { approved: true, feedback: 'Auto-approved' },
      completionMessage: 'Auto-approved - no critical issues',
    }
  },
})

// 3. Dynamic routing based on review outcome
// Routing decisions itself are dynamic, there is service that take config/or dynamic functions and returns the next node
function routeAfterReview(state: GraphState, ctx: GraphContext): string {
  const decision = routingResolver(state, ctx)
  return decision ? 'implement-recommendations' : 'escalate-to-senior-architect'
}

Key technical innovations

1. Branded types for domain safety

// Prevent mixing up similar string types
type NodeName = Branded<string, 'NodeName'>
type NodeInstanceName = Branded<string, 'NodeInstanceName'>
type WorkspaceId = Branded<string, 'WorkspaceId'>

// Compile-time safety across the entire stack
function executeNode(name: NodeName, instance: NodeInstanceName) {
  // TypeScript prevents passing wrong string types
}

2. Schema strategy pattern across the platform

// Support both static schemas (known at compile time) and dynamic schemas (LLM-generated)
type SchemaStrategy =
  | { type: 'static'; schemaClass: new () => any }
  | { type: 'dynamic'; schema: DynamicSchemaContainer }

// Runtime validation for both
const validator = SchemaStrategy.getValidator(nodeDefinition.inputStrategy)
const validatedInput = await validator.validate(rawInput)

3. Human-in-the-loop forms

@TypeSchema({
  name: 'SecurityReviewForm',
  renderingStrategy: 'inline_editable',
  actions: [
    { type: 'submit', value: 'Approve', variant: 'primary' },
    { type: 'submit', value: 'Request Changes', variant: 'warning' },
    { type: 'cancel', value: 'Escalate', variant: 'secondary' },
  ],
})
class SecurityReviewForm {
  @Field(() => Boolean, { description: 'Approve security findings?' })
  approved!: boolean

  @Field(() => String, { description: 'Review comments', required: false })
  comments?: string

  @Field(() => [String], { description: 'Required changes before approval' })
  requiredChanges!: string[]
}

4. Effect-based error handling

// Functional error handling with full context preservation
const result = pipe(
  validateWorkflowInput(input),
  Effect.andThen((input) => executeWorkflow(input)),
  Effect.catchAll((error) => handleWorkflowError(error, context)),
  Effect.tap((result) => logWorkflowSuccess(result)),
)

Production features that matter

Resume from any point

// Checkpoint every node execution
const graph = workflow.compile({
  checkpointer: new PostgresCheckpointer(db),
})

// Resume interrupted workflows
await graph.resume(threadId, {
  // Override state if needed
  approved: true,
  reviewComments: 'Approved after discussion',
})

Real-time collaboration

// WebSocket updates for collaborative editing
websocketService.broadcast({
  type: 'workflow_state_changed',
  nodeInstanceName,
  newState: sanitizedState,
  timestamp: Date.now(),
})

Comprehensive observability

// Automatic tracing for every node
const trace = createNodeEvent.complete(
  nodeName,
  nodeInstanceName,
  nodeKind,
  startTime,
  completionMessage,
  nestedGraphContext,
)

await tracer.nodeTrace(trace, context)

What we learned

What worked well

• Input/Output resolution eliminates the impedance mismatch between typed business logic and LangGraph's dynamic state
• Schema decorators enable automatic UI generation and validation
• Branded types catch entire categories of bugs at compile time
• Human-in-the-loop interrupts feel natural when properly abstracted

"LangGraph's interrupt mechanism is elegantly designed—we just needed to bridge it with our type-safe form generation system."

Challenges we solved

• Dynamic schema validation - solved with runtime Zod schema generation
• Visual editor sync - solved with bidirectional state transformers
• Type safety in dynamic graphs - solved with schema strategy pattern
• Error recovery - solved with Effect library and comprehensive checkpointing

What we saw in our own testing

These are our own observations from building and exercising the system, not benchmarked claims:

• Runtime type errors in node execution effectively disappeared once I/O resolution was in place
• Workflow development got noticeably faster once schema-driven UI generation and the I/O analysis layer existed
• Human-AI handoffs felt immediate, with state pushed over WebSockets rather than polled

"The combination of LangGraph's checkpointing with our type-safe abstractions created a system that's both developer-friendly and production-reliable."

Key takeaways for the LangGraph community

I've worked with many workflow engines—JBPM, Activiti, Camunda, etc. After facing their limitations, even built workflow engine from scratch using Scala and Akka-persistence. I can say confidently that LangGraph (as stateful orchestration framework) surprised me with its simplicity and LLM-focused approach. It feels like process engines were reinvented for the AI era. What they've built is brilliant. LangGraph doesn't limit you, I feel. What we built is living proof of that flexibility.

The key lessons:

1. Type safety is achievable in dynamic systems with the right resolution layer
2. Human-AI collaboration requires careful interrupt design and state management
3. Visual workflow builders can maintain type safety with proper schema management

The full system handles environment injection, nested graph execution, dynamic schema inference, and multi-tenant isolation.

Happy to dive deeper into any specific patterns that interest you.

Built with LangGraph.js, TypeScript, React Flow, and Effect.
